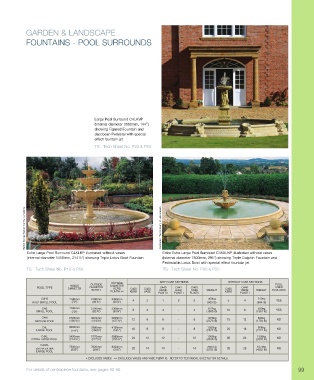

Page 99 - Haddonstone Gesamtkatalog 2018

GARDEN & LANDSCAPE

FOUNTAINS - POOL SURROUNDS

Large Pool Surround C4LKVP
(internal diameter 3660mm, 144”)
showing Figured Fountain and
Jacobean Pedestal with special
effect fountain jet
TS Tech Sheet No. P20 & P50

Barton Grange Garden Centre, Lancashire Contractor: The Company of Landscapers

Extra Large Pool Surround C4XLKP illustrated without vases Extra Extra Large Pool Surround C4XXLKP illustrated without vases
1
(internal diameter 5450mm, 214 ⁄2”) showing Triple Lotus Bowl Fountain (internal diameter 7500mm, 295”) showing Triple Dolphin Fountain and
Pedestal in Lotus Bowl with special effect fountain jet
TS Tech Sheet No. P10 & P50 TS Tech Sheet No. P80 & P50

WITH VASE SECTIONS
WITHOUT VASE SECTIONS
OUTSIDE
OUTSIDE
POOL
INSIDE
C440
C441
C440
POOL TYPE DIAMETER DIAMETER DIAMETER KERB VASE PLINTH PLINTH PLINTH WEIGHT C400 PLINTH WEIGHT AVAILABLE
C460
LINER
C400
C420
KERB
*
VASE
KERB
KERB
HALF
KERB
**
PLINTH
KERB
C4HS 1780mm 2100mm 2306mm 408kg 310kg
HALF SMALL POOL (70”) (82 3 ∕4”) (90 3 ∕4”) 4 2 1 2 2 (900 lb) 5 4 (684 lb) YES
C4S 1780mm 2100mm 2306mm 817kg 620kg
SMALL POOL (70”) (82 3 ∕4”) (90 3 ∕4”) 8 4 4 - 4 (1800 lb) 10 8 (1367 lb) YES
C4M 2705mm 3025mm 3235mm 1078kg 809kg
MEDIUM POOL (106 1 /2”) (119 1 ∕4”) (127 1 ∕2”) 12 6 6 - 6 (2376 lb) 15 12 (1784 lb) NO
C4L 3660mm 3980mm 4190mm 1303kg 958kg
LARGE POOL (144”) (156 3 ∕4”) (165”) 16 8 8 - 8 (2872 lb) 20 16 (2112 lb) NO
C4XL 5450mm 5770mm 5980mm 1968kg 1506kg
EXTRA LARGE POOL (214 1 /2”) (227 1 ∕4”) (235 1 ∕2”) 24 12 12 - 12 (4338 lb) 30 24 (3320 lb) NO
C4XXL
2587kg
1974kg
EXTRA EXTRA 7500mm 7820mm 8030mm 28 14 14 - 14 (5703 lb) 35 28 (4352 lb) NO
(308”)
(316”)
(295”)
LARGE POOL
* EXCLUDES VASES ** EXCLUDES VASES AND VASE PLINTHS. REFER TO TECHNICAL SHEETS FOR DETAILS.
For details of centrepiece fountains, see pages 90-96. 99
