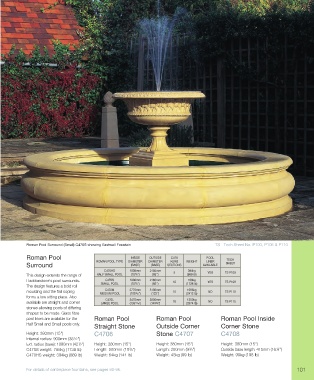

Roman Pool Surround (Small) C470S showing Eastwell Fountain TS Tech Sheet No. P100, P105 & P110

Roman Pool INSIDE OUTSIDE C470 POOL TECH
KERB
LINER
Surround ROMAN POOL TYPE DIAMETER DIAMETER SECTIONS WEIGHT AVAILABLE SHEET
(BASE)
(BASE)
C470HS 1800mm 2160mm 5 394kg YES TS P100
7
This design extends the range of HALF SMALL POOL (70 ∕ 8”) (85”) (869 lb)
Haddonstone’s pool surrounds. C470S 1800mm 2160mm 10 788kg YES TS P100
7
The design features a bold roll SMALL POOL (70 ∕ 8”) (85”) (1738 lb)
1095kg
C470M
moulding and the flat coping MEDIUM POOL 2770mm 3100mm 15 (2412 lb) NO TS P110
(109 ∕ 16”)
(122”)
1
forms a low sitting place. Also
C470L
1350kg
available are straight and corner LARGE POOL 3470mm 3800mm 18 (2974 lb) NO TS P115
(136 ∕ 16’)
(149 ∕ 8”)
11
5
stones allowing pools of differing
shapes to be made. Glass fibre
pool liners are available for the Roman Pool Roman Pool Roman Pool Inside
Half Small and Small pools only.
Straight Stone Outside Corner Corner Stone
Height: 380mm (15”) C4706 Stone C4707 C4708
Internal radius: 900mm (35 ⁄2”)
1
Ext. radius (base): 1080mm (42 ⁄2”) Height: 380mm (15”) Height: 380mm (15”) Height: 380mm (15”)
1
3
C470S weight: 788kg (1738 lb) Length: 500mm (19 ⁄4”) Length: 250mm (9 ⁄4”) Outside base length: 415mm (16 ⁄4”)
3
1
C470HS weight: 394kg (869 lb) Weight: 64kg (141 lb) Weight: 45kg (99 lb) Weight: 90kg (198 lb)
For details of centrepiece fountains, see pages 90-96. 101
