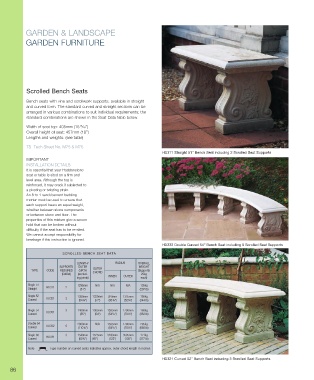

GARDEN & LANDSCAPE

GARDEN FURNITURE

Scrolled Bench Seats

Bench seats with vine and scrollwork supports, available in straight
and curved form. The standard curved and straight sections can be
arranged in various combinations to suit individual requirements; the
standard combinations are shown in the Seat Data table below.

Width of seat top: 405mm (15 ⁄16”)
15
Overall height of seat: 457mm (18”)
Lengths and weights: (see table)
TS Tech Sheet No. M75 & M76
HD311 Straight 51” Bench Seat including 2 Scrolled Seat Supports
IMPORTANT
INSTALLATION DETAILS
It is essential that your Haddonstone
seat or table is sited on a firm and
level area. Although the top is
reinforced, it may crack if subjected to
a pivoting or twisting strain.
An 8 to 1 sand/cement bedding
mortar must be used to ensure that
each support bears an equal weight,
whether between stone components
or between stone and floor. The
properties of this mixture give a secure
hold that can be broken without
difficulty if the seat has to be re-sited.
We cannot accept responsibility for
breakage if this instruction is ignored.
HD332 Double Curved 54” Bench Seat including 5 Scrolled Seat Supports

SCROLLED BENCH SEAT DATA

LENGTH/ RADIUS OVERALL
SUPPORTS OUTER WEIGHT
OUTER
TYPE CODE REQUIRED GIRTH CHORD (Supports
(D400A) (exclud- INNER OUTER 25kg
ing joints) each)
Single 51 1295mm N/A N/A N/A 135kg
Straight HD311 2 (51”) (297 lb)
Single 52 1380mm 1320mm 920mm 1325mm 156kg
Curved HD321 3 (54 ∕4”) (52”) (36 ⁄4”) (52 ⁄4”) (344 lb)
1
1
1
Single 54 HD331 3 1400mm 1365mm 1385mm 1790mm 160kg
Curved (55”) (54”) (54 ⁄2”) (70 ⁄2”) (352 lb)
1
1
Double 54 2800mm N/A 1385mm 1790mm 295kg
Curved HD332 5 (110 ⁄4”) (54 ⁄2”) (70 ⁄2”) (650 lb)
1
1
1
Single 60 HD341 3 1540mm 1525mm 3100mm 3505mm 171kg
Curved (60 ⁄2”) (60”) (122”) (138”) (377 lb)
1
Note Type number on curved seats indicates approx. outer chord length in inches
HD321 Curved 52” Bench Seat including 3 Scrolled Seat Supports
86
