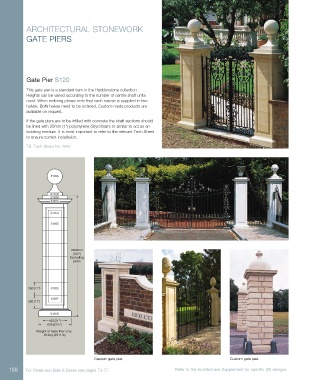

Page 158 - Haddonstone Gesamtkatalog 2018

ARCHITECTURAL STONEWORK

GATE PIERS

Gate Pier S120

This gate pier is a standard item in the Haddonstone collection.
Heights can be varied according to the number of centre shaft units
used. When ordering please note that each course is supplied in two
halves. Both halves need to be ordered. Custom-made products are
available on request.
If the gate piers are to be infilled with concrete the shaft sections should
be lined with 25mm (1”) polystyrene (Styrofoam) or similar to act as an
isolating medium. It is most important to refer to the relevant Tech Sheet
to ensure correct installation.
TS Tech Sheet No. M40

E120A

E120B
S120B
S120C

S120D

S120E

2590mm
(102")
Excluding
joints

280 (11") S120E

S120F
280 (11")

S120G
533 (21")
1
699 (27 ⁄2")
Weight of Gate Pier only:
914kg (2011 lb)

Custom gate pier. Custom gate pier.

158 For Finials and Balls & Bases see pages 73-77. Refer to the Architectural Supplement for specific US designs.
