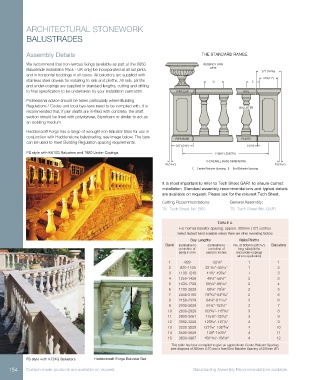

Page 154 - Haddonstone Gesamtkatalog 2018

ARCHITECTURAL STONEWORK

BALUSTRADES

Assembly Details THE STANDARD RANGE
We recommend that non-ferrous fixings (available as part of the X950 REGENCY URN
Balustrade Installation Pack - UK only) be incorporated at all rail joints A530 377 (14 ⁄8")
377 (14 7 13 ⁄16)
and in horizontal beddings in all cases. All balusters are supplied with
stainless steel dowels for installing to rails and plinths. All rails, plinths C E 279 (11")
and under-copings are supplied in standard lengths, cutting and drilling
to final specification to be undertaken by your installation contractor. PIER CAP RAIL
Professional advice should be taken particularly where Building
Regulations / Codes and local bye-laws need to be complied with. It is BALUSTER
recommended that, if pier shafts are in-filled with concrete, the shaft SHAFT
PIER
section should be lined with polystyrene, Styrofoam or similar to act as
an isolating medium.
Haddoncraft Forge has a range of wrought iron Baluster Bars for use in
conjunction with Haddonstone balustrading, see image below. The bars PIER BASE PLINTH
can be used to meet Building Regulation spacing requirements.
337 (13 ⁄4") 6 ( 1 ⁄4")
1
PS style with K610G Balusters and T920 Under-Copings Y (BAY LENGTH)

X (OVERALL BASE DIMENSION)
13
20 ( 13 ⁄16") 20 ( ⁄16")
C = Centre Baluster Spacing. E = End Baluster Spacing
It is most important to refer to Tech Sheet GAR1 to ensure correct
installation. Standard assembly recommendations and typical details
are available on request. Please ask for the relevant Tech Sheet.

Cutting Recommendations: General Assembly:
TS Tech Sheet No. B50 TS Tech Sheet No. GAR1

TABLE A
For normal baluster spacing: approx. 305mm (12”) centres
Select highest band available unless there are other overriding factors
Bay Lengths Rails/Plinths
Band (centreline to (centreline to No. of 900mm (35 ⁄16”) Balusters
7
centreline of centreline of long rails/plinths
piers) in mm piers) in inches and under-copings
where applicable)
1 -829 -32 ∕8” 1 1
5
2 830-1129 32 ∕16”-44 ∕16” 1 2
11
7
3 1130-1249 44 ∕2”-49 ∕16” 1 3
1
3
4 1250-1429 49 ∕4”-56 ⁄4” 2 3
1
1
5 1430-1729 56 ∕16”-68 ⁄16” 2 4
5
1
6 1730-2029 68 ∕8”-79 ⁄8” 2 5
1
7
7 2030-2155 79 ∕16”-84 ⁄16” 2 6
15
13
8 2156-2329 84 ∕8”-91 ⁄16” 3 6
7
11
9 2330-2629 91 ∕4”-103 ⁄2” 3 7
3
1
10 2630-2929 103 ∕16”-115 ⁄16” 3 8
9
5
11 2930-3061 115 ∕8”-120 ⁄2” 3 9
3
1
12 3062-3229 120 ∕16”-127 ⁄8” 4 9
9
1
13 3230-3529 127 ∕16”-138 ⁄16” 4 10
3
15
14 3530-3829 139”-150 ⁄4” 4 11
3
15 3830-3967 150 ∕16”-156 ⁄8” 4 12
1
13
This table has been compiled to give an approximate Centre Baluster Spacing
(see diagram) of 305mm (12”) and a fixed End Baluster Spacing of 200mm (8”).
FS style with K724G Balusters Haddoncraft Forge Baluster Bar
154 Custom-made products are available on request. Balustrading Assembly Recommendations available.
