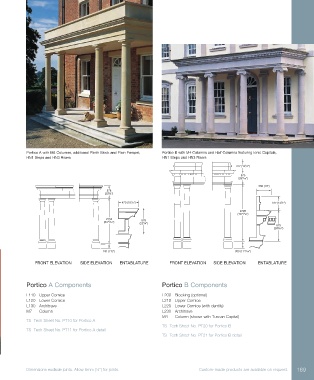

Page 169 - Haddonstone Gesamtkatalog 2018
P. 169

Portico A with M4 Columns, additional Plinth Block and Plain Parapet,   Portico B with M4 Columns and Half Columns featuring Ionic Capitals,
                  HN1 Steps and HN3 Risers                                    HN1 Steps and HN3 Risers

                                                                                                                   1
                                                                                                               317 (12 ⁄2")
                                                                                                                 675
                                                                                                                (26 ⁄16")
                                                                                                                 9
                                                                                                                         330 (13")
                                                     578
                                                     (22 ⁄4")
                                                      3
                                                                1
                                                                                                                                   1
                                                            470 (18 ⁄2")                                                       317 (12 ⁄2")
                                                                                                                2728
                                                                                                                  7
                                                                                                               (107 ⁄16")
                                                     2154
                                                      13
                                                    (84 ⁄16")        578
                                                                      3
                                                                    (22 ⁄4")
                                                                                                                                675
                                                                                                                                 9
                                                                                                                               (26 ⁄16")
                                                                                                                  13
                                                    191 (7 ⁄2")                                               300 (11 ⁄16")
                                                       1
                         FRONT ELEVATION       SIDE ELEVATION      ENTABLATURE        FRONT ELEVATION      SIDE ELEVATION          ENTABLATURE



                  Portico A Components                                        Portico B Components

                  L110  Upper Cornice                                         L200  Blocking (optional)
                  L120  Lower Cornice                                         L210  Upper Cornice
                  L130  Architrave                                            L220  Lower Cornice (with dentils)
                  M7   Column                                                 L230  Architrave
                                                                              M4    Column (shown with Tuscan Capital)
                  TS  Tech Sheet No. PT10 for Portico A
                                                                              TS  Tech Sheet No. PT20 for Portico B
                  TS  Tech Sheet No. PT11 for Portico A detail
                                                                              TS  Tech Sheet No. PT21 for Portico B detail








                  Dimensions exclude joints. Allow 6mm ( ⁄4”) for joints.                     Custom-made products are available on request.  169
