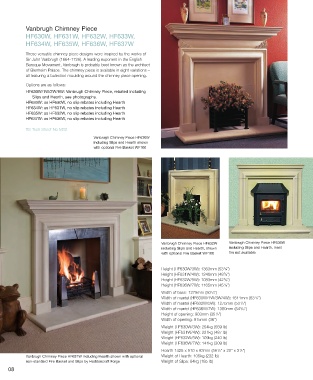

Vanbrugh Chimney Piece

HF630W, HF631W, HF632W, HF633W,
HF634W, HF635W, HF636W, HF637W

These versatile chimney piece designs were inspired by the works of
Sir John Vanbrugh (1664-1726). A leading exponent in the English
Baroque Movement, Vanbrugh is probably best known as the architect
of Blenheim Palace. The chimney piece is available in eight variations –
all featuring a bolection moulding around the chimney piece opening.
Options are as follows:
HF630W/1W/2W/6W: Vanbrugh Chimney Piece, rebated including
Slips and Hearth, see photographs.
HF633W: as HF630W, no slip rebates including Hearth
HF634W: as HF631W, no slip rebates including Hearth
HF635W: as HF632W, no slip rebates including Hearth
HF637W: as HF636W, no slip rebates including Hearth

TS Tech Sheet No M32
Vanbrugh Chimney Piece HF630W
including Slips and Hearth shown
with optional Fire Basket WF100

Vanbrugh Chimney Piece HF632W Vanbrugh Chimney Piece HF636W
including Slips and Hearth, shown including Slips and Hearth. Inset
with optional Fire Basket WF100 fire not available

Height (HF630W/3W): 1363mm (53 /4")
3
Height (HF631W/4W): 1240mm (48 /8")
7
Height (HF632W/5W): 1083mm (42 /8")
5
Height (HF636W/7W): 1165mm (45 /8")
7
Width of base: 1275mm (50 /4")
1
Width of mantel (HF630W/1W/3W/4W): 1611mm (63 /2")
1
Width of mantel (HF632W/5W): 1275mm (50 /4")
1
Width of mantel (HF636W/7W): 1380mm (54 /16")
5
Height of opening: 903mm (35 /2")
1
Width of opening: 915mm (36")
Weight (HF630W/3W): 254kg (559 lb)
Weight (HF631W/4W): 221kg (487 lb)
Weight (HF632W/5W): 109kg (240 lb)
Weight (HF636W/7W): 141kg (309 lb)
Hearth 1425 x 510 x 63mm (56 /4" x 20" x 2 /2")
1
1
Vanbrugh Chimney Piece HF631W including Hearth shown with optional Weight of Hearth: 105kg (232 lb)
non-standard Fire Basket and Slips by Haddoncraft Forge Weight of Slips: 84kg (185 lb)
